AC1000-AC5000 Filter Regulator Lubricator Combinations

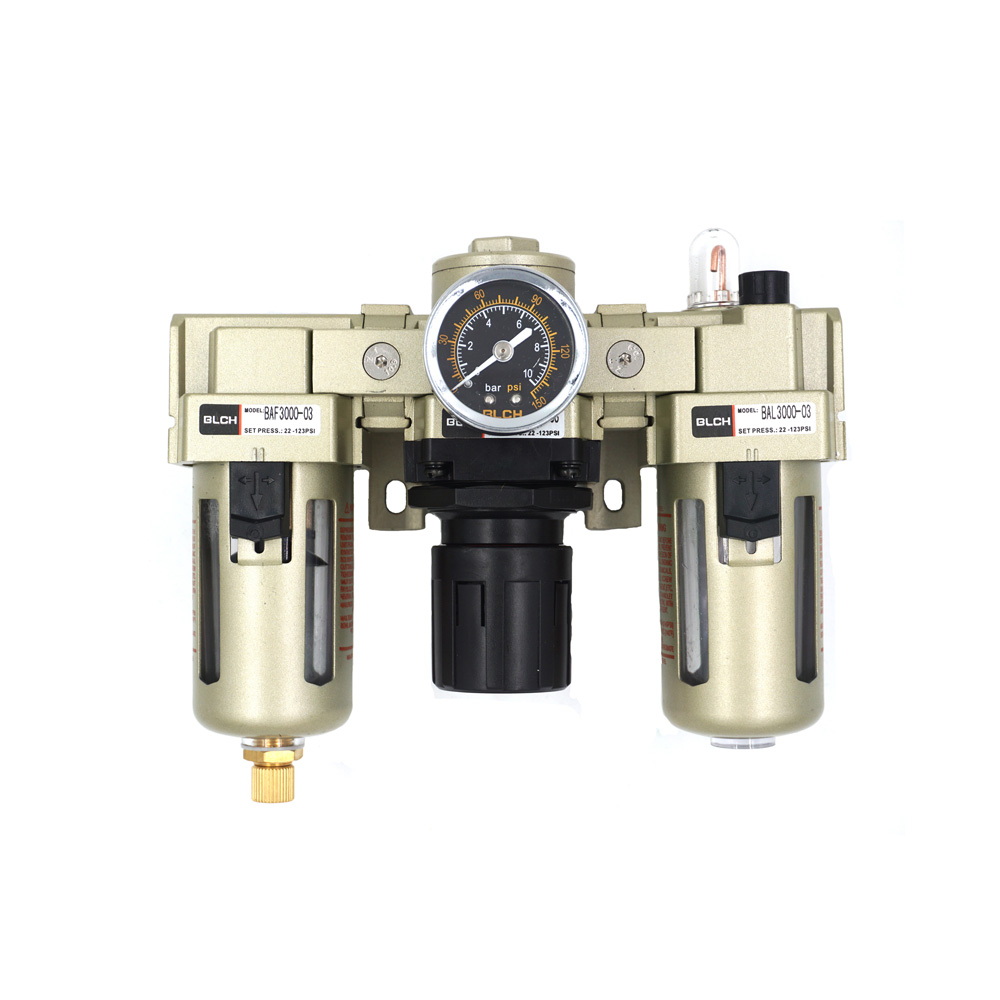

AC combination with bowl guards

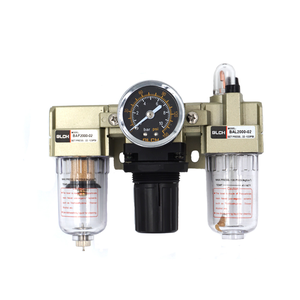

AC combination with transparent bowls

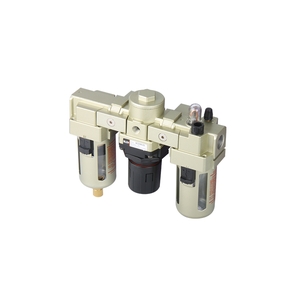

AC combination angled view

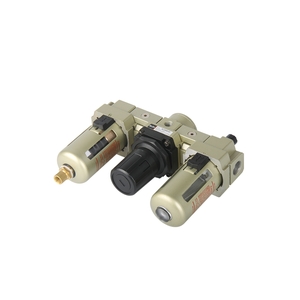

AC combination lower angled view

Series Part Number

Part Number: A C 3000 - 03 D
Explanation:

Series

Function

C - Three-unit filter, regulator and lubricator combination

Body Size

1000 - M5 port
2000 - Port codes 01 or 02
3000 - Port codes 02 or 03
4000 - Port codes 03, 04 or 06
5000 - Port codes 06 or 10

Port Size

M5 - M5×0.8
01 - 1/8in
02 - 1/4in
03 - 3/8in
04 - 1/2in
06 - 3/4in
10 - 1in; select a port code allowed for the body size

Drain

Blank - Standard drain; manual drainage for the 2000 body and differential-pressure drainage for the other sizes
D - Automatic drain

Description

AC1000-AC5000 three-unit combinations pair an AF filter, AR regulator and AL lubricator. Select the body size and port connection for the required flow, then choose the drain arrangement and check the corresponding installation dimensions.

Ordering code

Example: AC3000-03D identifies an AC three-unit combination with a 3000 body, 3/8″ ports and automatic drainage.

Code positionChoices and meaning
ASeries code
CFilter, regulator and lubricator combination
Body size1000, 2000, 3000, 4000 or 5000
Port codeM5: M5; 01: 1/8″; 02: 1/4″; 03: 3/8″; 04: 1/2″; 06: 3/4″; 10: 1″
Drain suffixBlank: differential-pressure drain; manual drain for size 2000. D: automatic drain.

Models and components

The standard and D-suffix versions in each row share the listed components, ports and flow rating. The automatic-drain version has a different overall height.

Standard modelAutomatic-drain modelFilterRegulatorLubricatorPort Rc(G)Maximum flow, L/min (ANR)
AC1000-M5AC1000-M5DAF1000AR1000AL1000M5 × 0.890
AC2000-01AC2000-01DAF2000AR2000AL20001/8″500
AC2000-02AC2000-02DAF2000AR2000AL20001/4″500
AC3000-02AC3000-02DAF3000AR3000AL30001/4″2000
AC3000-03AC3000-03DAF3000AR3000AL30003/8″2000
AC4000-03AC4000-03DAF4000AR4000AL40003/8″4000
AC4000-04AC4000-04DAF4000AR4000AL40001/2″4000
AC4000-06AC4000-06DAF4000AR4000AL40003/4″4500
AC5000-06AC5000-06DAF5000AR5000AL50003/4″5000
AC5000-10AC5000-10DAF5000AR5000AL50001″5000

Pressure, gauges and construction

Body sizeWorking pressureGauge portGaugeBowl guard
10000.15-0.7MPaM5 × 0.8Y20Without guard
20000.15-0.85MPa1/8″Y40Without guard
30001/8″Y40Iron guard
40001/4″Y50
50001/4″Y50
Common specificationValue
Maximum pressure1.0MPa
Ambient temperature-5-60°C
Filtration40μm standard; 5μm optional
Recommended oilNo. 1 turbine oil, ISO VG32
Body materialAluminum alloy
Bowl materialPolycarbonate (PC)

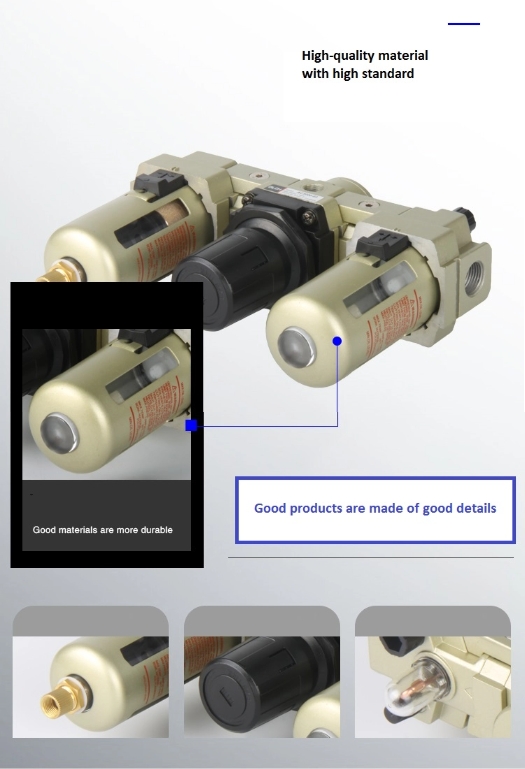

AC combination drain, regulator knob and lubricator details
Guarded bowls, drain, regulator adjustment knob and lubricator sight glass on an AC combination.

Installation dimensions

Dimensions are in mm. Match A, C and B to the drawing; choose the correct drain version before allowing mounting space.

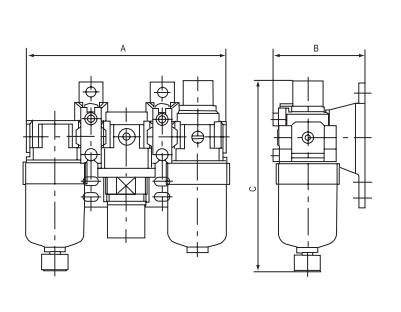

AC combination outline drawing with dimensions A, C and B
Front and side outline views identifying dimensions A, C and B.
ModelA, mmC, mmB, mm
AC1000-M5878741
AC2000-01/0214011848
AC3000-02/0318014268
AC4000-03/0423817387
AC4000-0625519085
AC5000-06/10300265115
AC1000-M5D8710441
AC2000-01D/02D14014548
AC3000-02D/03D18019468
AC4000-03D/04D23820587
AC4000-06D25521085
AC5000-06D/10D300286115

The attached Pneumatic Components Catalogue includes the wider pneumatic range.
