| Part Number: | A | C | 3010 | - | 03 | D |
|---|---|---|---|---|---|---|
| Explanation: |
Series |
Function C - Two-unit filter-regulator and lubricator combination |
Body Size 1010 - M5 port |
Port Size M5 - M5×0.8 |
Drain Blank - Standard drain; manual drainage for the 2010 body and differential-pressure drainage for the other sizes |

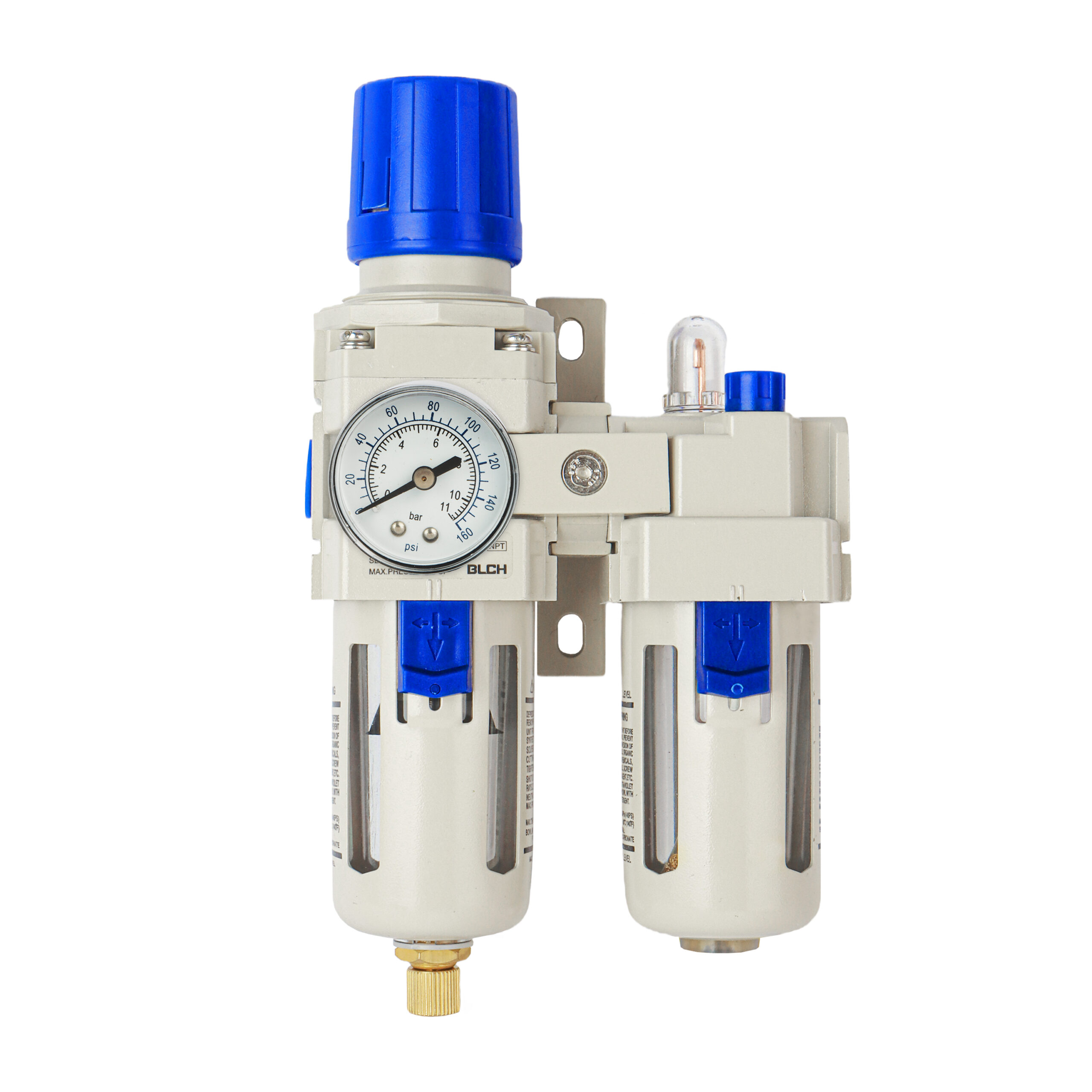

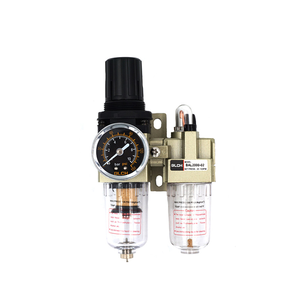

AC1010-AC5010 two-unit combinations join an AW filter-regulator and an AL lubricator. They cover M5 to 1″ connections, with standard and D-suffix automatic-drain versions. Match the flow rating and gauge arrangement to the selected body size.
Example AC3010-03D: A is the series code, C identifies the combination, 3010 is the body size, 03 specifies a 3/8″ port and D selects automatic drainage.
| Code position | Choices |
|---|---|
| Body size | 1010, 2010, 3010, 4010 or 5010 |
| Port | M5: M5; 01: 1/8″; 02: 1/4″; 03: 3/8″; 04: 1/2″; 06: 3/4″; 10: 1″ |

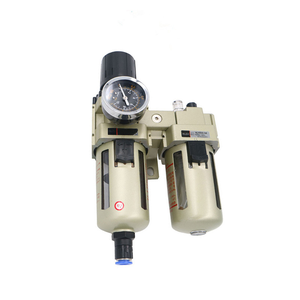

| Drain | Blank: differential-pressure drain, with manual drainage for the 2000 component size. D: automatic drain. |
| Standard model | Automatic-drain model | Filter-regulator | Lubricator | Port Rc(G) | Maximum flow, L/min (ANR) |
|---|---|---|---|---|---|
| AC1010-M5 | AC1010-M5D | AW1000 | AL1000 | M5 × 0.8 | 90 |
| AC2010-01 | AC2010-01D | AW2000 | AL2000 | 1/8″ | 500 |
| AC2010-02 | AC2010-02D | AW2000 | AL2000 | 1/4″ | 500 |
| AC3010-02 | AC3010-02D | AW3000 | AL3000 | 1/4″ | 1700 |
| AC3010-03 | AC3010-03D | AW3000 | AL3000 | 3/8″ | 1700 |
| AC4010-03 | AC4010-03D | AW4000 | AL4000 | 3/8″ | 3000 |
| AC4010-04 | AC4010-04D | AW4000 | AL4000 | 1/2″ | 3000 |
| AC4010-06 | AC4010-06D | AW4000 | AL4000 | 3/4″ | 3000 |
| AC5010-06 | AC5010-06D | AW5000 | AL5000 | 3/4″ | 5000 |
| AC5010-10 | AC5010-10D | AW5000 | AL5000 | 1″ | 5000 |
| Combination size | Working pressure | Gauge port | Gauge | Bowl guards |
|---|---|---|---|---|
| AC1010 | 0.15-0.7MPa | M5 × 0.8 | Y20 | Without guards |
| AC2010 | 0.15-0.85MPa | 1/8″ | Y40 | Without guards |

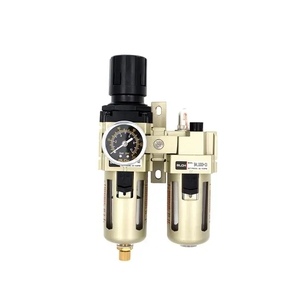

| AC3010 | 1/8″ | Y40 | Iron guards | |
| AC4010 | 1/4″ | Y50 | ||
| AC5010 | 1/4″ | Y50 |
| Common specification | Value |
|---|---|
| Maximum pressure | 1.0MPa |
| Ambient temperature | -5-60°C |
| Filtration | 40μm standard; 5μm optional |
| Recommended oil | No. 1 turbine oil, ISO VG32 |
| Body material | Aluminum alloy |
| Bowl material | Polycarbonate (PC) |

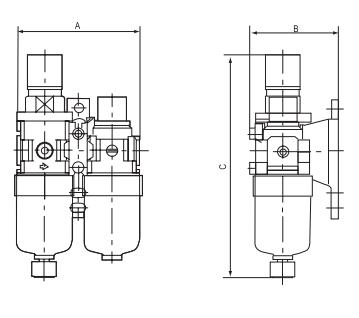

Dimensions are in mm. Standard and automatic-drain versions share A and B, while the D-suffix version has the separate C height shown below. Grouped port codes refer to the models in the selection table.
| Standard model group | A | C, standard | C, D suffix | B |
|---|---|---|---|---|
| AC1010-M5 | 56 | 108 | 124 | 41 |
| AC2010-01/02 | 95 | 165 | 180 | 50 |
| AC3010-02/03 | 117 | 207 | 242 | 67 |
| AC4010-03/04 | 153 | 259 | 275 | 85 |
| AC4010-06 | 165 | 265 | 278 | 86 |
| AC5010-06/10 | 193 | 339 | 354 | 112 |
The attached Pneumatic Components Catalogue includes the wider pneumatic range.
