| Part Number: | ETC | - | 08 | PF | D |
|---|---|---|---|---|---|
| Explanation: |
Series ETC - PLC terminal interface modules; this breakdown covers ETC-08PF, ETC-08PFD, ETC-16PF and ETC-16PFD only. |
Signal Connections 08 - 8 signal connections through one inlet connector |
PLC Application PF - Terminal interface for Panasonic FP series PLC wiring |
Signal Indicators Blank - Omit this field; without signal indicators |
ETC PF modules provide dedicated terminal interfaces for Panasonic FP series PLC wiring. The 08 models provide eight numbered signal connections; the 16 models provide two groups of eight. PFD versions add indicators beside the signal connections.
| Model | Signal connections | Connector arrangement | Signal indicators |
|---|---|---|---|
| ETC-08PF | 8 | One inlet connector | Without indicators |

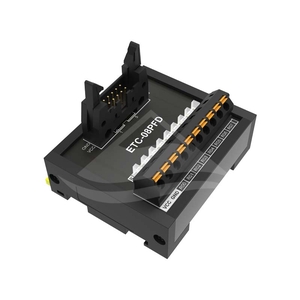

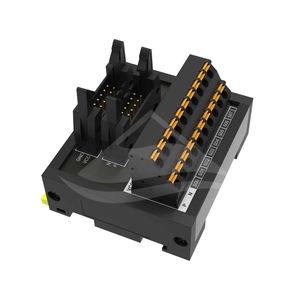

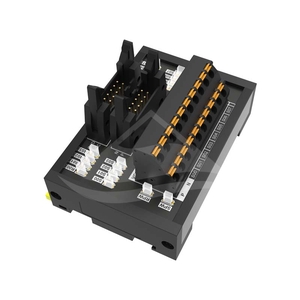

| ETC-08PFD | 8 | One inlet connector | With indicators |
| ETC-16PF | 16, in two groups of 8 | Two inlet connectors | Without indicators |
| ETC-16PFD | 16, in two groups of 8 | Two inlet connectors | With indicators |
| Characteristic | All four models |
|---|---|
| Rated voltage | 24VDC |
| Rated current | 1A |
| Dielectric withstand voltage | 2000VAC minimum; test duration not specified |
| Insulation resistance | >5000MΩ at 500VDC |
| Suitable wire size | 26-16AWG |
| Ambient temperature range | -55°C to +105°C |
Select the exact FP PLC module and cable assignment together with the terminal interface. Signal and supply terminals carry separate labels; match these labels to the equipment wiring diagram.
