ETL MIL Connector Terminal Interface Modules

ETL-20 Standard Numbering Interface

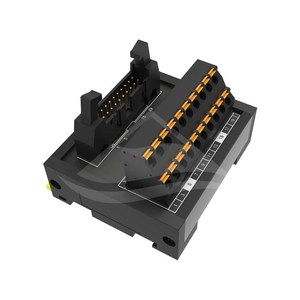

ETL-20K Odd and Even Numbering Interface
ETL-34 Standard Numbering Interface

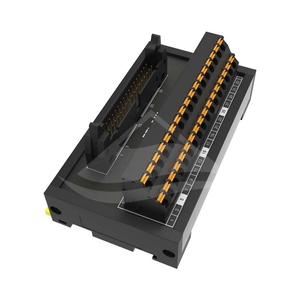

ETL-34K Odd and Even Numbering Interface
ETL-40 Standard Numbering Interface
ETL-40K Odd and Even Numbering Interface

Series Part Number

Part Number: ETL - 20 K
Explanation:

Series

ETL - MIL connector terminal interface modules; this breakdown covers ETL-20, ETL-20K, ETL-34, ETL-34K, ETL-40 and ETL-40K only.

Connector Contacts

20 - 20 contacts
34 - 34 contacts
40 - 40 contacts

Terminal Numbering

Blank - Omit this field; consecutive rows 1–10 and 11–20 for 20 contacts, 1–17 and 18–34 for 34 contacts, or 1–20 and 21–40 for 40 contacts
K - Odd numbers in one row and even numbers in the other: 1–19/2–20, 1–33/2–34 or 1–39/2–40 for the respective contact counts

Description

MIL signal connector interfaces

ETL modules bring a MIL connector to field-wiring terminals in three contact counts. Standard models number each terminal row consecutively; K models use odd and even terminal numbering. Match the numbering layout and cable assignment to the equipment connection.

ModelMIL contactsTerminal numbering
ETL-20201-10 and 11-20
ETL-20K20Odd 1-19 and even 2-20
ETL-34341-17 and 18-34
ETL-34K34Odd 1-33 and even 2-34
ETL-40401-20 and 21-40
ETL-40K40Odd 1-39 and even 2-40

Shared electrical and environmental data

CharacteristicAll six models
Rated voltage24VDC
Rated current1A
Dielectric withstand voltage500VAC minimum; test duration not specified
Insulation resistance>100MΩ at 500VDC
Applicable cable conductor size1.5mm² / 16AWG
Ambient temperature range-10°C to +50°C, without icing or condensation

Connector contact count does not by itself establish a PLC signal assignment. Check the cable connections and the chosen standard or K terminal labels when preparing the wiring schedule.
