| Part Number: | ETS | - | 16L |
|---|---|---|---|
| Explanation: |
Series ETS - General purpose I/O terminal modules; this breakdown covers ETS-16L and ETS-32L only. |

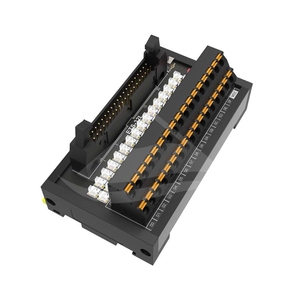

Module Configuration 16L - ETS-16L, 16-signal general purpose input/output terminal module with numbered signal indicators |
ETS-16L and ETS-32L provide connector-to-terminal interfaces for 16 and 32 input/output signals respectively. Numbered field terminals and adjacent indicators identify the signal positions. Select the signal count and match the connector pin assignment to the connected I/O equipment.
| Model | I/O signal count | Application |
|---|---|---|
| ETS-16L | 16 | General purpose input/output terminal interface |
| ETS-32L | 32 | General purpose input/output terminal interface |
| Characteristic | Both models |
|---|---|
| Rated voltage | 24VDC |
| Rated current | 1A |
| Dielectric withstand voltage | 500VAC minimum; test duration not specified |
| Insulation resistance | >100MΩ at 500VDC |
| Applicable cable conductor size | 1.25mm² / 16AWG |
| Ambient temperature range | -10°C to +50°C, without icing or condensation |
Use the terminal labels and the equipment wiring assignment to distinguish signal connections from supply connections. The stated signal count does not establish compatibility with a particular PLC model.
