| Part Number: | ULO | - | CC01 | - | M5 | A | - | 04P | - | MM | - | PM | SH | - | SL | A | 01 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Explanation: |
Manufacturer ULO - ULO connector identifier |
Series CC01 - Circular connector family; this breakdown covers the four listed M5 premolded cable families and their documented PDF options. |
Interface M5 - M5 circular mating interface |
Coding A - A-coded interface; 3 or 4 contacts only |
Contact Count Code 03P - 3 contacts |
Contact Gender MM - Male contacts |
Cable Construction PM - Premolded connector with a trimmed free cable end |
Shielding Blank - Omit this field; unshielded cable |
Body Code SL - Straight connector |
Cable Jacket A - PVC, UL2517 cable style |
Cable Length 01–99 - Two-digit length in metres: 01 = 1m through 99 = 99m; length tolerance ±50mm for 1–5m, ±100mm for 6–10m, ±200mm for 11–30m and ±500mm for 31–99m |
These black sensor and actuator cables combine an M5×0.5 connector with a free cable end. Three- and four-contact A-coded arrangements are available across straight and angled male and female model families.
| Model family | Contacts | Cable exit |
|---|---|---|
| ULO-CC01-M5A-XXP-MM-PMXX-SLXXX | Male | Straight |
| ULO-CC01-M5A-XXP-FF-PMXX-SLXXX | Female | Straight |

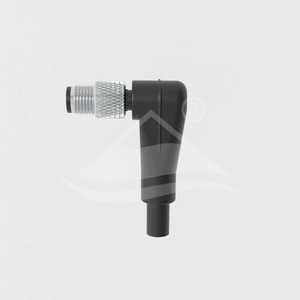

| ULO-CC01-M5A-XXP-MM-PMXX-SRXXX | Male | Angled |

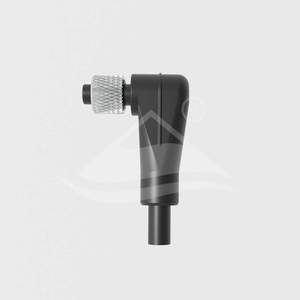

| ULO-CC01-M5A-XXP-FF-PMXX-SRXXX | Female | Angled |
| Characteristic | Specification |
|---|---|
| Coding and contact count | A coding; 3 or 4 contacts |
| Rated voltage | 60V |
| Rated current | 1A |
| Withstand voltage | 800V |
| Contact resistance | ≤3mΩ |
| Protection rating | IP67 |
| Operating temperature | -25°C to +85°C |
| Mating life | ≥100 insertion and withdrawal cycles |
| Salt-spray test notation | 48h(1m) |
| Compliance | RoHS |
Withstand waveform and duration are not specified. The salt-spray method and the meaning of its 1m condition are also unspecified; the notation does not establish a saltwater immersion rating.
| Contact number | Three-contact cable | Four-contact cable |
|---|---|---|
| 1 | Brown | Brown |
| 2 | Not fitted | White |
| 3 | Blue | Blue |
| 4 | Black | Black |
Match contact numbers to the male or female face drawing in the corresponding PDF. The three-contact version uses positions 1, 3 and 4.
| Option | Code | Selection |
|---|---|---|
| Contact count | 03 or 04 | 3 or 4 contacts |
| Jacket | A | PVC, UL2517 wire style |
| Jacket | B | PUR, UL20549 wire style |
| Shielding | SH | Shielded |
| Shielding | No SH designation | Unshielded |
| Length | 01 through 99 | 1-99m selection range |
| Nominal cable length | Length tolerance |
|---|---|
| 1-5m | ±50mm |
| 6-10m | ±100mm |
| 11-30m | ±200mm |
| 31-99m | ±500mm |
These options are listed for all four model families. The family identifiers contain placeholders; use the individual model legend to specify the required cable.
| Part or property | Material or classification |
|---|---|
| Contacts | CuZn copper-zinc alloy |
| Contact surface | Gold |
| Contact carrier | PU polyurethane |
| Moulded body | TPU thermoplastic polyurethane |
| Metal coupling ring | Nickel-plated copper alloy |
| Seal | Silicone |
| Flammability classification | UL94V-0 |
| Configuration | Mating-end length | Following body section | Coupling diameter |
|---|---|---|---|
| Male, MM-PMXX-SLXXX | 10.8mm | 29.87mm | Ø6mm |
| Female, FF-PMXX-SLXXX | 7.8mm | 20mm | Ø6mm |
| Configuration | Body length × height | Mating-end length | Coupling diameter |
|---|---|---|---|
| Male, MM-PMXX-SRXXX | 20.5mm × 19.8mm | 10.8mm | Ø6mm |
| Female, FF-PMXX-SRXXX | 20.5mm × 16.8mm | 7.8mm | Ø6mm |
| General drawing tolerance | Value |
|---|---|
| One decimal place, .X | ±0.3mm |
| Two decimal places, .XX | ±0.1mm |
| Angles | ±1° |
Body dimensions and cable-length tolerances are separate. Refer to the selected model's PDF for the complete outline and connector-face orientation.
