MJS Mini Jumpers and Ganged Shunts in 2.0mm and 2.54mm

Series Part Number

Part Number:	ULO	-	MJS415A	-	2	A	B	8	0	1
Explanation:	Prefix		Model MJS415 - 2.54mm two-contact jumper MJS415A - 2.54mm jumper and pin connector assembly MJS415B - 2.54mm ganged jumper MJS416 - 2.0mm two-contact jumper MJS416A - 2.0mm ganged jumper		Contacts or Ports 2 - Two contacts; MJS415, MJS415A or MJS416 3 - Three ports; MJS415B or MJS416A 4 - Four ports; MJS415B or MJS416A 5 - Five ports; MJS415B or MJS416A 6 - Six ports; MJS415B or MJS416A 7 - Seven ports; MJS415B or MJS416A 8 - Eight ports; MJS415B or MJS416A 9 - Nine ports; MJS415B or MJS416A 10 - Ten ports; MJS415B or MJS416A	Housing A - Open B - Closed L - Long; MJS415 only, with its separate outline	Colour B - Black; all models U - Blue; except MJS415A Y - Yellow; except MJS415A W - White; except MJS415A E - Green; except MJS415A R - Red; except MJS415A	Plating 8 - Full gold flash; MJS415A only F1 - Full gold flash; other models N - Nickel; other models 2 - Gold and nickel; other models	Height A 0 - 6.0mm; MJS415, MJS415A or MJS415B 1 - 6.47mm for MJS415; 3.50mm for MJS416 2 - 5.00mm; MJS416 only 3 - 4.30mm; MJS416A only	Assembly 1 - One DS1021 connector and one DS1027 jumper; MJS415A only Blank - Omit this field for the other models

Description

Pitch and construction selection

MJS jumpers provide removable shorting connections for pin-header arrangements. Select the exact pitch and body form before choosing height, colour and finish. The 2.0mm and 2.54mm versions have different mating dimensions.

Model	Pitch	Construction	Housing styles	Profile height A	Housing material
ULO-MJS415	2.54mm	Two-contact jumper	Open, closed, long	6.0mm or 6.47mm; long form has its own outline	Thermoplastic
ULO-MJS415A	2.54mm	Two-contact jumper and pin connector assembly	Open or closed	6.0mm jumper profile	PBT
ULO-MJS415B	2.54mm	Ganged, 3-10 ports	Open or closed	6.0mm	PBT
ULO-MJS416	2.0mm	Two-contact jumper	Open or closed	3.50mm or 5.00mm	PBT
ULO-MJS416A	2.0mm	Ganged, 3-10 ports	Open or closed	4.30mm	PBT

Electrical and material characteristics

Characteristic	Specification
Insulation resistance	≥500MΩ
Contact impedance	≤30mΩ
Dielectric withstand test	250VAC RMS for 1 minute
Operating temperature	-20°C to +80°C
Contact material	Copper alloy
Insulating material group	I
Housing flammability classification	UL94V-0
Rated operating voltage and current	Unspecified

The 250VAC value is a withstand-test condition and does not define a continuous working-voltage rating. Contact finish is selected through the ordering code; plating thickness is unspecified.

Colour and finish codes

Option	Code	Meaning	Applicable models
Housing colour	B	Black	All five models
Housing colour	U, Y, W, E, R	Blue, yellow, white, green, red, respectively	MJS415, MJS415B, MJS416, MJS416A
Contact finish	F1	Full gold flash	MJS415, MJS415B, MJS416, MJS416A
Contact finish	N	Nickel	MJS415, MJS415B, MJS416, MJS416A
Contact finish	2	Gold and nickel	MJS415, MJS415B, MJS416, MJS416A
Contact finish	8	Full gold flash	MJS415A only

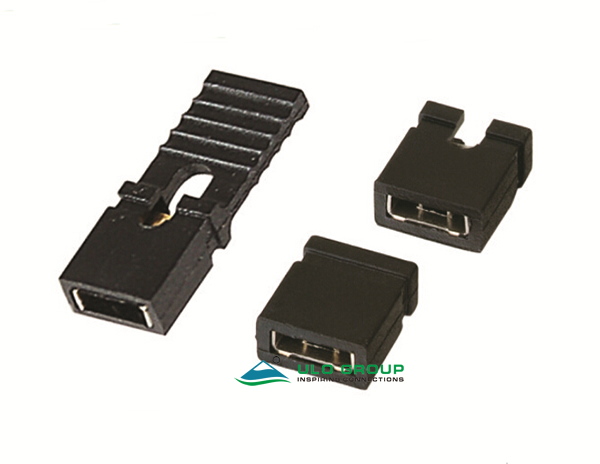

MJS415 two-contact jumpers

The standard body is 5.00mm wide and 2.50mm thick, with a 2.54mm mating pitch. The long housing extends to 13.50mm and has a separate 2.40mm thickness dimension.

Ordering field	Code and option
Contacts	2: two contacts
Housing	A: open; B: closed; L: long
Height A	0: 6.0mm; 1: 6.47mm

MJS415 contact, housing, colour, finish and height ordering positions — MJS415 ordering sequence; the long housing uses the separate long-form outline.

MJS415 open, closed and long jumper dimensions — MJS415 dimensions: 2.54mm pitch, 5.00mm body width and the 13.50mm long housing.

MJS415A jumper and pin connector assembly

This version combines one DS1021 connector with one DS1027 jumper component. The assembly has 2.54mm pin spacing and square pin sections of 0.64mm × 0.64mm, with the drawing marking a ±0.05mm pin-size tolerance. The pin extension is 3.00mm; overall axial dimensions are 11.5mm to the upper edge and 10.5mm to the inner reference surface.

Ordering field	Code and option
Contacts	2: two contacts
Housing	A: open; B: closed
Colour	B: black
Finish	8: full gold flash
Height A	0: 6.0mm
Connector quantity	1: two components, one DS1021 and one DS1027

MJS415A assembly ordering code and component quantity — MJS415A ordering positions include the two-component assembly designation.

MJS415A open and closed assembly sections with pin dimensions — MJS415A sections identify DS1021 and DS1027, the 5.00mm × 2.50mm body and the projecting pins.

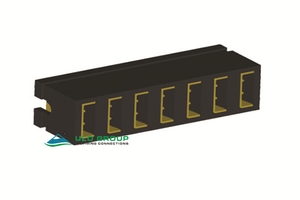

MJS415B ganged 2.54mm jumpers

MJS415B groups 3-10 ports in one housing. Port spacing is 2.54mm, the transverse body dimension is 5.00mm and profile height A is 6.0mm. For N ports, the end-port centre distance is (N−1) × 2.54mm and overall length is N × 2.54mm ±0.3mm.

Ordering field	Code and option
Port count	3, 4, 5, 6, 7, 8, 9 or 10: corresponding number of ports
Housing	A: open; B: closed
Height A	0: 6.0mm

MJS415B ganged jumper port and housing options — MJS415B ordering options for 3-10 ports, housing, colour, finish and height.

MJS415B ganged jumper length formula and port dimensions — MJS415B length formulas use N as the number of ports; pitch and the 2.50mm transverse contact dimension are shown separately.

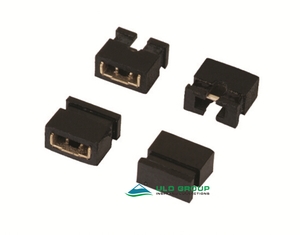

MJS416 two-contact 2.0mm jumpers

MJS416 has a 3.90mm body width, 1.90mm thickness and 2.00mm contact spacing. Select a 3.50mm or 5.00mm profile through the height code and use the corresponding open or closed outline.

Ordering field	Code and option
Contacts	2: two contacts
Housing	A: open; B: closed
Height A	1: 3.50mm; 2: 5.00mm

MJS416 two-contact jumper ordering fields — MJS416 uses its own height codes for 3.50mm and 5.00mm profiles.

MJS416 open and closed jumper dimension sections — MJS416 body and contact dimensions, including 2.00mm pitch and the illustrated profile heights.

MJS416A ganged 2.0mm jumpers

MJS416A offers 3-10 ports at 2.00mm spacing. The transverse body dimension is 3.90mm and profile height is 4.30mm. Overall length is N × 2.0mm ±0.3mm, with an end-port centre distance of (N−1) × 2.0mm.

Ordering field	Code and option
Port count	3, 4, 5, 6, 7, 8, 9 or 10: corresponding number of ports
Housing	A: open; B: closed
Height A	3: 4.30mm

MJS416A port count, housing and finish ordering options — MJS416A ordering sequence ends with height code 3 for the 4.30mm profile.

MJS416A 2.0mm ganged jumper outline and length formula — MJS416A port spacing, 3.90mm transverse dimension and length formulas; N is the number of ports.
