| Part Number: | ULO | - | PCB456 | - | 2 | F | C | W | 6 | A |
|---|---|---|---|---|---|---|---|---|---|---|
| Explanation: |
Brand ULO - ULO |

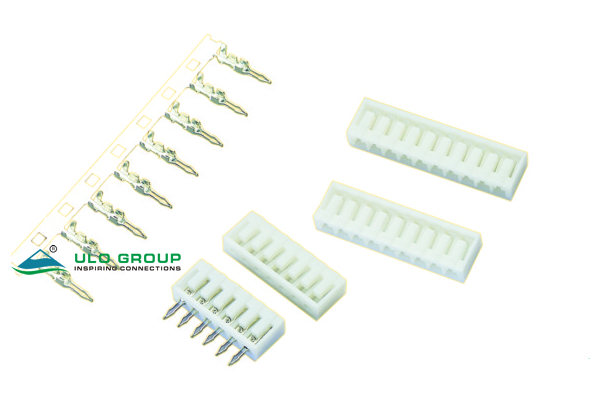

Family PCB456 - 2.5mm SCN crimp connector family; order required components separately |
Contacts 2–16 - Number of contacts |
Connector Type F - Female |
Termination C - Crimp |
Colour W - White |
Plating 6 - Tin |
Terminal Type A - Type A; 9.80mm overall length |
ULO-PCB456 is a 2.5mm-pitch SCN family comprising female housings and separate crimp terminals. Housings cover 2 to 16 positions. Terminal types A and B have different tip profiles and overall lengths; select the terminal type with the housing and intended wire.
| Component | Selection |
|---|---|
| Female housing | 2–16 positions; white or transparent |
| Female terminal A | 9.80mm overall length; 2.0mm tip-region reference; 1.10mm profile reference |
| Female terminal B | 9.50mm overall length; 1.60mm tip-region reference; 1.15mm profile reference |
PCB456 is the family designation. Individual component suffix numbers and package quantities are unspecified. Specify the required housings and terminals separately when ordering an assembly.
| Characteristic | PCB456 |
|---|---|
| Rated current | 1A |
| Rated voltage | 250V |
| Contact impedance | ≤30mΩ |
| Insulation impedance | ≥1000MΩ |
| Dielectric withstand test | 500VAC for 1 minute |
| Operating temperature | -25°C to +85°C |
| Storage temperature | -25°C to +85°C |
| PCB thickness reference | 1.6mm |
| Insulator | Nylon 66, material group I |
| Material flammability grade | UL94V-0 |
| Contact material | Copper alloy |
| Terminal conductor area | Wire gauge | Wire outside diameter |
|---|---|---|
| 0.08–0.33mm² | 28–22AWG | 0.9–1.7mm |
| Field | Code and meaning |
|---|---|
| Contact count | 2–16 |
| Connector type | F: female |
| Termination | C: crimp |
| Housing colour | W: white; T: transparent |
| Contact plating | 6: tin; 8: full gold flash |
| Terminal type | A: type A; B: type B |
The female housing is 6.5mm high and 3.90mm wide. A is the contact span and B is the overall housing length. All A and B dimensions below are in millimetres.
| Positions | A | B |
|---|---|---|
| 2 | 2.5 | 6.5 |
| 3 | 5.0 | 9.0 |
| 4 | 7.5 | 11.5 |
| 5 | 10.0 | 14.0 |
| 6 | 12.5 | 16.5 |
| 7 | 15.0 | 19.0 |
| 8 | 17.5 | 21.5 |
| 9 | 20.0 | 24.0 |
| 10 | 22.5 | 26.5 |
| 11 | 25.0 | 29.0 |
| 12 | 27.5 | 31.5 |
| 13 | 30.0 | 34.0 |
| 14 | 32.5 | 36.5 |
| 15 | 35.0 | 39.0 |
| 16 | 37.5 | 41.5 |
The mounting section shows a 1.60mm PCB and a 2.00mm terminal projection below it. Use the selected terminal profile when checking the assembly; a complete PCB drill pattern and crimp-tool setting are unspecified.
