| Part Number: | ULO | - | PCB457A | - | 2 | M | V | W | 6 |
|---|---|---|---|---|---|---|---|---|---|
| Explanation: |
Brand ULO - ULO |
Family PCB457A - 2.5mm EH connector family; order required components separately |
Contacts 2–20 - Number of contacts |
Connector Type M - Male |
Mounting / Termination C - Crimp female terminal |
Colour W - White |
Plating 6 - Tin |

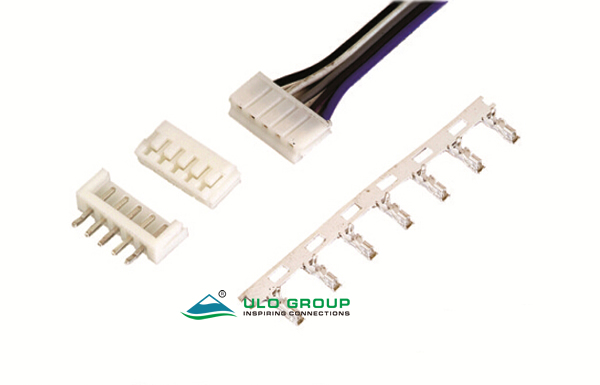

ULO-PCB457A is a 2.5mm-pitch EH wire-to-board family with 2 to 20 positions. Select the female cable housing, female crimp terminals and male PCB header as separate components. Vertical and right-angle headers provide different board layouts.
| Component | Configuration |
|---|---|
| Female housing | 2–20 positions; dimension table below |
| Female terminal | Crimp contact; 5.80mm overall length |
| Male vertical header | V/T; 2–20 positions; 3.20mm solder-tail reference |
| Male right-angle header | R/A; 2–20 positions; 3.20mm solder-tail reference |
PCB457A identifies the component family. Specify housing count, terminal quantities and header orientation separately; cable length and assembled cable quantities are unspecified.
| Characteristic | PCB457A |
|---|---|
| Rated current | 3A |
| Rated voltage | 250V |
| Core wire range | 24–18AWG |
| Contact impedance | ≤30mΩ |
| Insulation impedance | ≥1000MΩ |
| Dielectric withstand test | 500VAC for 1 minute |
| Operating temperature | -25°C to +85°C |
| Storage temperature | -25°C to +85°C |
| Thickness reference | 1.6mm |
| Insulator | Nylon 66, material group I |
| Material flammability grade | UL94V-0 |
| Contact material | Copper alloy |
Wire-insulation diameter and crimp tooling settings are unspecified. The dielectric withstand value is a test condition.
| Field | Code and meaning |
|---|---|
| Contact count | 2–20 |
| Connector type | M: male; F: female |
| Mounting or termination | C: crimp; V: vertical through-hole; R: right angle |
| Housing colour | W: white; T: transparent |
| Contact plating | 6: tin; 8: full gold flash |
A is the contact span. Female and male components have different B dimensions at the same position count. All table dimensions are in millimetres.
| Positions | Female housing | Male header | ||
|---|---|---|---|---|
| A | B | A | B | |
| 2 | 2.5 | 4.4 | 2.5 | 5.0 |
| 3 | 5.0 | 6.9 | 5.0 | 7.5 |
| 4 | 7.5 | 9.4 | 7.5 | 10.0 |
| 5 | 10.0 | 11.9 | 10.0 | 12.5 |
| 6 | 12.5 | 14.4 | 12.5 | 15.0 |
| 7 | 15.0 | 16.9 | 15.0 | 17.5 |
| 8 | 17.5 | 19.4 | 17.5 | 20.0 |
| 9 | 20.0 | 21.9 | 20.0 | 22.5 |
| 10 | 22.5 | 24.4 | 22.5 | 25.0 |
| 11 | 25.0 | 26.9 | 25.0 | 27.5 |
| 12 | 27.5 | 29.4 | 27.5 | 30.0 |
| 13 | 30.0 | 31.9 | 30.0 | 32.5 |
| 14 | 32.5 | 34.4 | 32.5 | 35.0 |
| 15 | 35.0 | 36.9 | 35.0 | 37.5 |
| 16 | 37.5 | 39.4 | 37.5 | 40.0 |
| 17 | 40.0 | 41.9 | 40.0 | 42.5 |
| 18 | 42.5 | 44.4 | 42.5 | 45.0 |
| 19 | 45.0 | 46.9 | 45.0 | 47.5 |
| 20 | 47.5 | 49.4 | 47.5 | 50.0 |
The female housing profile shows 6.50mm height, 3.80mm outer width, 3.40mm lower width and a 0.60mm top projection. The terminal drawing includes 2.85mm, 2.05mm and 1.30mm length references, with a 2.01mm cross-section height and 1.00mm/1.60mm widths.
The vertical male header shows a 6.40mm front-body reference, 3.90mm side width, 5.60mm side-body height and 0.64mm contact width. The right-angle version shows 6.70mm front-body height, 4.20mm side width, 6.40mm side-body height and a 2.20mm lower reference. Use the appropriate orientation drawing when checking board clearance.
