| Part Number: | ULO | - | PCB462 | - | 2 | M | V | T | 6 |
|---|---|---|---|---|---|---|---|---|---|
| Explanation: |
Brand ULO - ULO |
Family PCB462 - 5.08mm connector family; order required components separately |
Contacts 2–10 - Number of contacts |
Connector Type M - Male |
Mounting / Termination C - Crimp female terminal |
Colour T - Transparent |
Plating 6 - Tin |

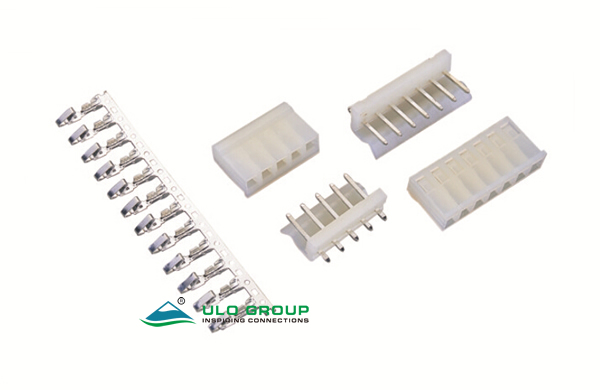

ULO-PCB462 uses a 5.08mm pitch and supports 2 to 10 contacts. The family includes female cable housings, female crimp terminals and male PCB headers in vertical or right-angle orientations.
| Component | Configuration |
|---|---|
| Female housing | 2–10 contacts; transparent housing option |
| Female crimp terminal | 24–18AWG; 13.8mm overall length |
| Male vertical header | 2–10 contacts; 17.5mm overall side-profile reference |
| Male right-angle header | 2–10 contacts; 17.3mm overall side-profile reference |
Specify housing and terminal quantities separately from the required header orientation. PCB462 is the family designation; complete cable assemblies and cable lengths are unspecified.
| Characteristic | PCB462 |
|---|---|
| Rated current | 1A |
| Rated voltage | 250V |
| Contact impedance | ≤30mΩ |
| Insulation impedance | ≥1000MΩ |
| Dielectric withstand test | 500VAC for 1 minute |
| Operating temperature | -25°C to +85°C |
| Storage temperature | -25°C to +85°C |
| Thickness reference | 1.6mm |
| Insulator | Nylon 66, material group I |
| Material flammability grade | UL94V-0 |
| Contact material | Copper alloy |
| Component | Conductor area | Wire gauge | Wire outside diameter |
|---|---|---|---|
| Female terminal | 0.2–0.75mm² | 24–18AWG | 1.3–2.8mm |

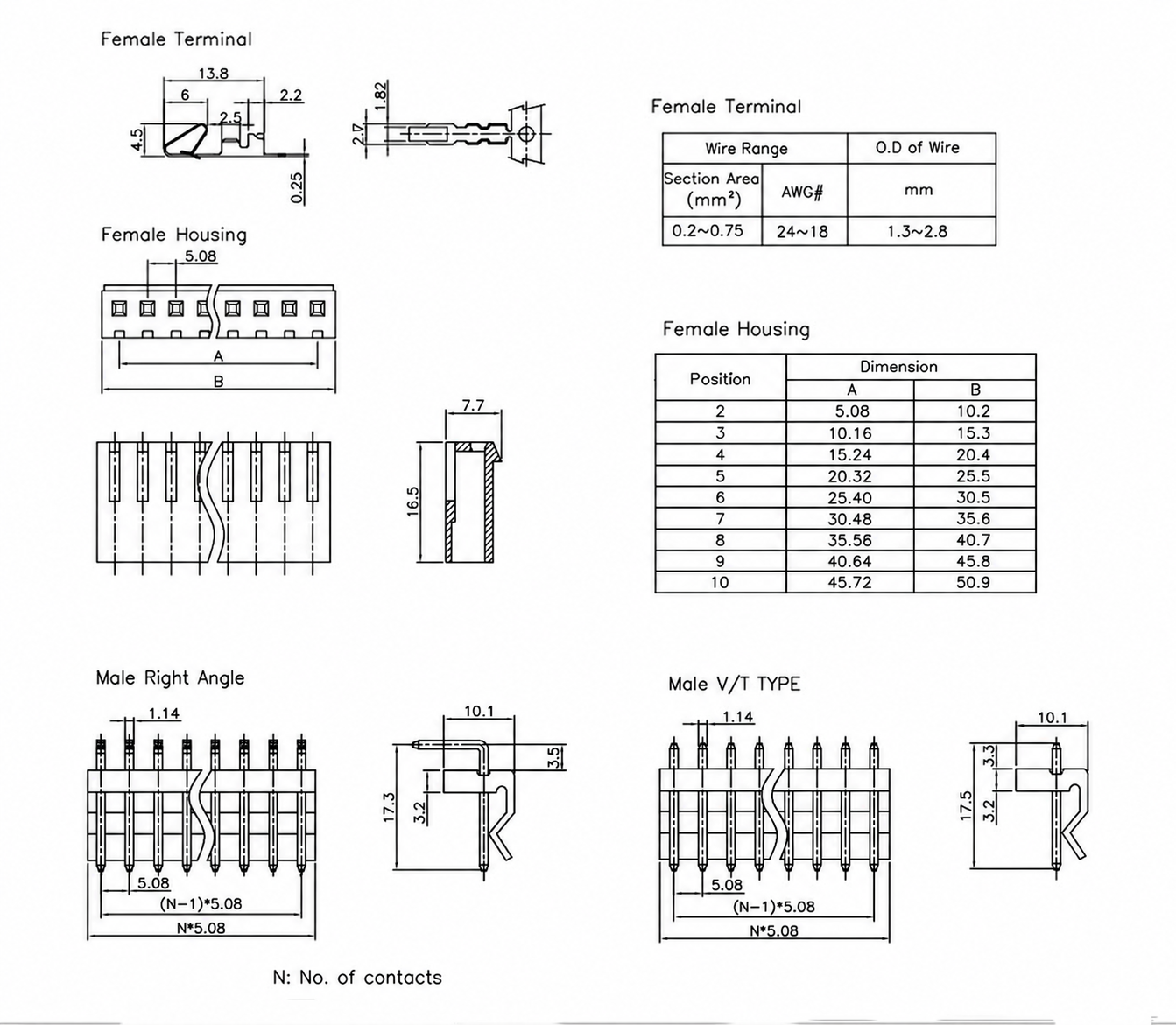

The female terminal has a 13.8mm overall length with 6mm, 2.5mm and 2.2mm longitudinal references, a 4.5mm height, 2.7mm and 1.82mm width references, and a 0.25mm lower projection. Crimp tooling and stripping settings are unspecified.
| Field | Code and meaning |
|---|---|
| Contact count | 2–10 |
| Connector type | M: male; F: female |
| Mounting or termination | C: crimp; R: right angle; V: vertical through-hole |
| Housing colour | T: transparent |
| Contact plating | 6: tin; 8: full gold flash |
A is the contact span and B is the female housing row length. All table dimensions are in millimetres.
| Positions | A | B |
|---|---|---|
| 2 | 5.08 | 10.2 |
| 3 | 10.16 | 15.3 |
| 4 | 15.24 | 20.4 |
| 5 | 20.32 | 25.5 |
| 6 | 25.40 | 30.5 |
| 7 | 30.48 | 35.6 |
| 8 | 35.56 | 40.7 |
| 9 | 40.64 | 45.8 |
| 10 | 45.72 | 50.9 |
The female housing side profile shows 16.5mm height and 7.7mm width. For N contacts, male headers use a contact span of (N − 1) × 5.08mm and a row length of N × 5.08mm. Both male orientations show 1.14mm contact width, a 10.1mm body-side reference and a 3.2mm inner vertical reference.
The right-angle header has a 17.3mm overall side-profile reference and a 3.5mm upper reference. The vertical header has a 17.5mm overall reference and a 3.3mm upper reference. Match the chosen orientation to its individual drawing.
