UE20 Two Channel High Speed Counter Modules

UE20 Two Channel PNP Counter Module

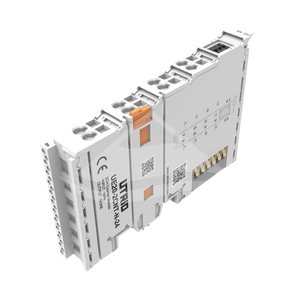

UE20 Two Channel NPN Counter Module
UE20 Differential Encoder Counter Module

Series Part Number

Part Number: UE20 - 2 CNT - P - 24
Explanation:

Platform

UE20 - UE20 I/O platform; this breakdown covers the three listed counter modules

Channels

2 - 2 counting channels

Function

CNT - High-speed counter

Signal Type

P - PNP; use the following 24 field
N - NPN; use the following 24 field
DS - Differential encoder interface; omit the following voltage field and its hyphen

Input Voltage

24 - 24V signal input; P or N only
Blank - DS model: omit this field and its preceding hyphen; no 5V suffix is assigned

Description

Choose the encoder signal interface

UE20 counter modules provide two channels for pulse and encoder measurement. UE20-2CNT-P-24 accepts 24V PNP signals, UE20-2CNT-N-24 accepts 24V NPN signals, and UE20-2CNT-DS accepts differential encoder signals. Match the module to the encoder interface and required signal-cable length.

CharacteristicUE20-2CNT-P-24UE20-2CNT-N-24UE20-2CNT-DS
Channels222
Signal interfacePNPNPNDifferential; A/B/Z incremental or pulse/direction encoder
Input signal voltage24V24V5V differential encoder interface
Counting modesLinearLinearLinear and ring
Input frequency limit1MHz maximum1MHz maximumBelow 1MHz
Multiplication×1, ×2, ×4×1, ×2, ×4×1, ×2, ×4; default ×1
Maximum signal cable length2m2m10m
Input impedanceNot specifiedNot specified>500kΩ

Counter values and isolation

CharacteristicSpecification
Unsigned 32-bit linear count range0 to 4294967295
Signed 32-bit linear count range-2147483648 to 2147483647
PNP/NPN isolation withstand500V on field side and 500V on digital side; channels are not isolated from each other
Differential model isolationOptocoupler isolation between internal bus and field inputs

Signed and unsigned ranges are alternative numerical representations. Select the appropriate representation and counting mode in the control configuration.

System supply and encoder power

CharacteristicPNP/NPN modelsDifferential model
Operating supply5V DC, ±10%5V DC nominal; 4.75-5.25V DC
System supply current270mA210mA typical at 5V DC
Encoder/load supply outputNot specified5V DC, ±10%
Encoder/load supply currentNot specified1A maximum
Connection methodSpring terminal blocksSpring terminal blocks

The differential model provides encoder power at terminals 13 and 14. Its 1A encoder supply rating is separate from the module system-supply current.

Mounting and environmental selection

CharacteristicPNP/NPN modelsDifferential model
Height × width × depth100mm × 12mm × 68mm100mm × 12mm × 68mm overall
Mounting35mm DIN rail35mm DIN rail
Ingress protectionIP20IP20
Operating temperature-10°C to +55°C-10°C to +55°C for application
Storage temperature-20°C to +85°C-20°C to +60°C for application
Operating relative humidity5-95%RH, non-condensing5-95%RH, non-condensing
Storage relative humidity5-95%RH, non-condensingBelow 90%RH, non-condensing
