USE Relay Sockets for URE One and Two Changeover Relays

USE Single Changeover Screw Relay Socket

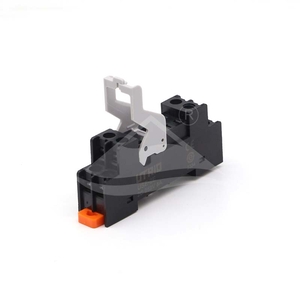

USE Double Changeover Screw Relay Socket

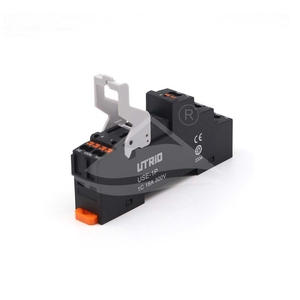

USE Single Changeover Push-In Relay Socket

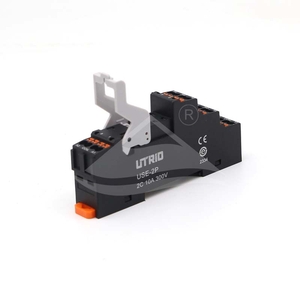

USE Double Changeover Push-In Relay Socket

Series Part Number

Part Number: USE - 2 P
Explanation:

Socket Series

USE - Socket series for the listed URE relay configurations; this breakdown covers the four listed USE sockets

Relay Configuration

1 - 1 changeover contact; URE1
2 - 2 changeover contacts; URE2

Connection

E - Screw terminals
P - Push-in terminals

Description

Select the socket for the relay and wiring method

USE sockets provide the wiring interface and retaining clip for URE plug-in relays. Select a one-changeover or two-changeover socket to match the relay configuration, then choose screw or push-in terminals. The socket and relay are separate items; the complete circuit must remain within the ratings of both.

Socket modelRelay configurationMatching relay familyConnection
USE-1E1 changeover contact (1CO)URE1Screw
USE-2E2 changeover contacts (2CO)URE2Screw
USE-1P1 changeover contact (1CO)URE1Push-in
USE-2P2 changeover contacts (2CO)URE2Push-in

Model-specific electrical and wiring data

ModelSocket current ratingSocket voltage ratingConductor cross-sectionScrew torque
USE-1E10A300VAC0.5-2.5mm²1.0N·m
USE-2E10A300VAC0.5-2.5mm²1.0N·m
USE-1P16A300VAC0.25-2.5mm²Not applicable
USE-2P10A300VAC0.25-2.5mm²Not applicable

These are socket ratings. They do not define the switching capacity, coil voltage or load type of a fitted relay.

Insulation withstand levels

Test boundaryWithstand voltageTest duration
Coil circuit to contact circuit4000VNot specified
Between contact circuits2500VNot specified

Environment and weight

ModelAmbient temperatureWeight
USE-1E-40°C to +85°C28g
USE-2E-40°C to +85°C31g
USE-1P-40°C to +85°C46g
USE-2P-40°C to +85°C48g
