| Part Number: | UV | - | PN | - | D16C000 |
|---|---|---|---|---|---|
| Explanation: |
Platform UV - Integrated vertical I/O platform; this breakdown covers the ten listed digital-input models |
Protocol PN - PROFINET |
Input Configuration D16C000 - Fixed 16-input configuration; NPN and PNP inputs |
UV vertical remote I/O modules integrate a network interface with 16 or 32 digital inputs. Each input model supports NPN and PNP signals. Select the exact protocol-specific model for the control network; each listed model has the protocol shown below.
| Protocol | 16-input model | 32-input model |
|---|---|---|

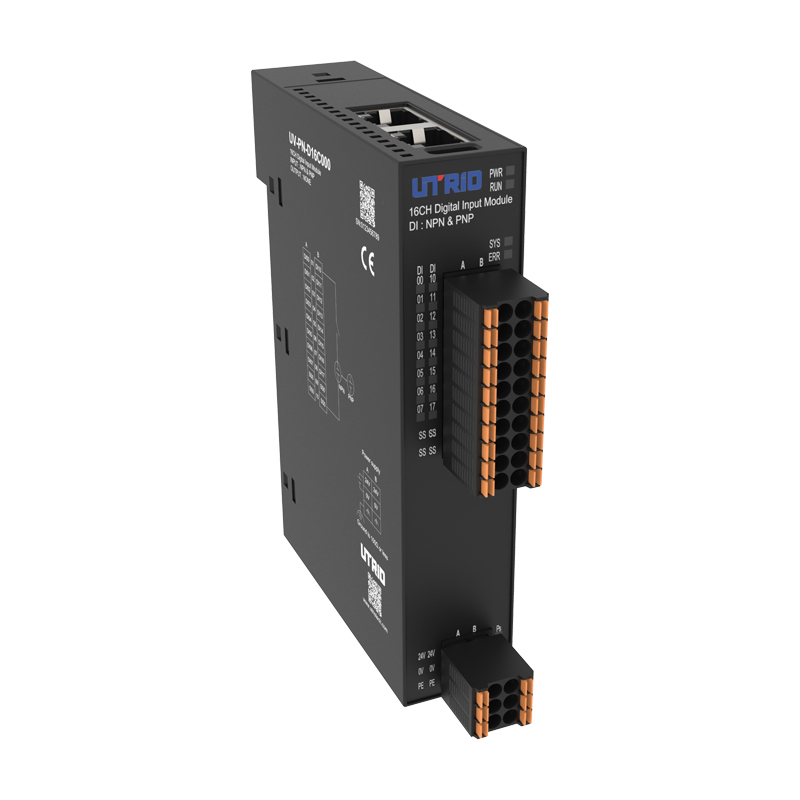

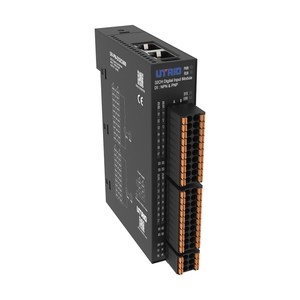

| PROFINET | UV-PN-D16C000 | UV-PN-D32C000 |
| EtherCAT | UV-EC-D16C000 | UV-EC-D32C000 |
| EtherNet/IP | UV-EIP-D16C000 | UV-EIP-D32C000 |

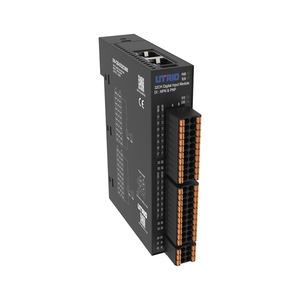

| CC-Link IE Field Basic | UV-CB-D16C000 | UV-CB-D32C000 |
| Modbus TCP | UV-MT-D16C000 | UV-MT-D32C000 |
| Model prefix | Transmission rate | Maximum communication data capacity | Address or port information |
|---|---|---|---|
| UV-PN | 10/100Mbps, full duplex | 1024 bytes | Address setting according to PROFINET |
| UV-EC | 100Mbps | 1024 bytes | Address setting according to EtherCAT |
| UV-EIP | 100Mbps | 1024 bytes | Address setting according to EtherNet/IP |
| UV-CB | 100Mbps | RX/RY: 64 bits; RWr/RWw: 32 words per logical station | Port 61450 for periodic data; port 61451 for node search |
| UV-MT | 100Mbps | 1024 bytes | Address setting according to Modbus TCP |
The communication data capacities describe the network interface. The selected model retains its specified 16 or 32 physical inputs. CB models use CC-Link IE Field Basic.
| Network characteristic | All models |
|---|---|
| Station type | Remote I/O station |
| Station occupancy | 1 station |
| Topology | Bus topology |
| Communication distance | ≤100m |
| Transmission medium | Category 5 Ethernet cable |
| Network isolation | Electrical isolation |
| Input state | PNP operation | NPN operation |
|---|---|---|
| ON | 15-30V | -3V to +3V |
| OFF | -3V to +3V | 15-30V |
| Input characteristic | All models |
|---|---|
| Signal types | NPN and PNP |
| Signal connection | One-wire |
| Typical input current | 3mA |
| Reverse circuit protection | Supported |
| Field isolation | Optical isolation from the field layer |
| Error diagnostics | Supported |
| Characteristic | All models |
|---|---|
| Height × width × depth | 80mm × 24mm × 115mm |
| Mounting | 35mm DIN rail |
| Ingress protection | IP20 |
| Pollution degree | 2 |
| Operating temperature | -10°C to +55°C |
| Storage temperature | -20°C to +85°C |
| Relative humidity | 5-95%RH, non-condensing |
